Vacuum circuit breakers are essential components in modern medium-voltage power systems, known for their fast arc extinction, low maintenance needs, and long operational life. Among the various ways to categorize these breakers, one of the most practical and application-driven approaches is by installation location. Whether the device is used indoors or outdoors has a direct impact on its design, protective features, and reliability. In this article, we explore the different types of vacuum circuit breakers based on their installation environments, comparing indoor and outdoor models, and offering guidance on how to select the right type for your specific needs.
A vacuum circuit breaker is a type of electrical switchgear that interrupts fault currents using a vacuum as the arc-extinguishing medium. Inside the vacuum interrupter, the arc is formed and then rapidly extinguished due to the absence of gas or air, which prevents arc sustenance. This mechanism provides exceptional insulation and reliable switching performance, making vacuum circuit breakers a preferred solution in medium-voltage networks. Their compact structure, high dielectric strength, and minimal maintenance requirements make them suitable for both utility and industrial applications.
Learn More: What is Vacuum Circuit Breaker in Electrical?
The location where a vacuum circuit breaker is installed significantly influences its construction and application. Installation environments generally fall into two main categories: indoor and outdoor. Each environment demands specific structural and protective features to ensure safe and long-lasting operation under relevant conditions.

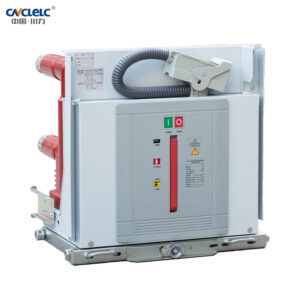

Indoor vacuum circuit breakers are specifically designed for use inside buildings or enclosed electrical rooms. They are typically installed in metal-clad or metal-enclosed switchgear, where they are protected from dust, humidity, and temperature extremes. Common indoor applications include commercial buildings such as hotels and offices, as well as industrial facilities, hospitals, and data centers. Indoor VCBs are compact in design and generally easier to maintain due to their controlled operating environment. Their structure allows for safe handling, reliable arc suppression, and stable performance under normal indoor conditions.

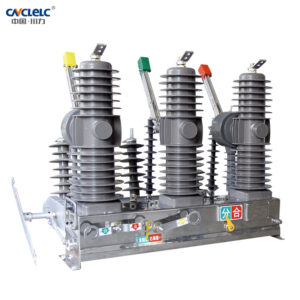

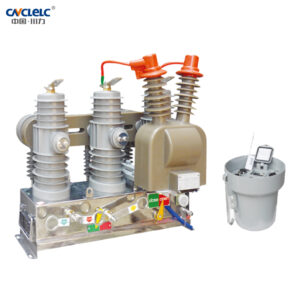

Outdoor vacuum circuit breakers are engineered for installation in exposed environments without overhead protection. These units are housed in robust, weather-resistant enclosures that offer high levels of ingress protection against water, dust, and UV exposure. Outdoor VCBs are commonly used in substations, renewable energy plants, transmission yards, and large outdoor industrial installations. Their larger size accommodates additional insulation and structural support required to operate safely in challenging weather conditions. The materials and sealing technologies used in outdoor designs are selected to withstand temperature variations, rain, and contamination while maintaining electrical integrity.
| Feature | Indoor VCB | Outdoor VCB |
|---|---|---|
| Installation Environment | Enclosed spaces | Open-air, exposed to weather |
| Protection Level | Moderate (metal-clad enclosure) | High (weatherproof, IP-rated) |
| Common Applications | Buildings, control rooms | Substations, outdoor power fields |
| Maintenance Access | Easier, safer access | Requires weather-considerate planning |
| Design Size | Compact, space-saving | Larger, robust enclosures |
The comparison reveals that indoor vacuum circuit breakers are more suitable for protected environments where space-saving design and ease of maintenance are critical. In contrast, outdoor vacuum circuit breakers are better suited for high-demand environments requiring rugged protection from external elements such as rain, dirt, and extreme temperatures. The choice between the two types largely depends on the physical setting and operating requirements of the electrical system.
Choosing the right type of vacuum circuit breaker starts with understanding the installation environment. For indoor applications, compact and metal-clad designs are often preferred due to easier maintenance and better integration with building infrastructure. For outdoor installations, it is essential to select units with robust enclosures, high IP ratings, and material durability to withstand environmental stress. Additional factors such as voltage rating, current capacity, available installation space, and long-term maintenance strategy should also influence the selection process. Consulting technical specifications and industry standards can help ensure that the VCB meets both functional and safety requirements for its intended application.
Learn More: Air Circuit Breaker vs Vacuum Circuit Breaker
The installation environment plays a vital role in determining the right type of vacuum circuit breaker for any electrical system. Indoor and outdoor vacuum circuit breakers differ significantly in terms of protection, design, and application suitability. Indoor types are ideal for enclosed and controlled conditions, while outdoor breakers are built to perform in harsh, exposed environments. Understanding these distinctions enables better planning, safer operation, and more reliable electrical distribution. By selecting the appropriate breaker type, engineers and facility managers can enhance system stability, reduce operational risk, and extend equipment life.
