In complex power systems, high voltage switchgear is a critical component for ensuring the safe, reliable, and efficient distribution of electricity. Whether in power plants, large industrial facilities, or urban grids, these advanced systems are essential for managing high-voltage currents. If you want to gain a deeper understanding of the core of modern power distribution, you’ve come to the right place.
This article will provide a detailed overview of everything you need to know about high voltage switchgear – what it is, its primary functions, its key components, the different types available, and how to perform routine maintenance. Whether you’re an industry professional, a student, or simply curious about the subject, this comprehensive guide will help you understand the central role high voltage switchgear plays in our electrified world.

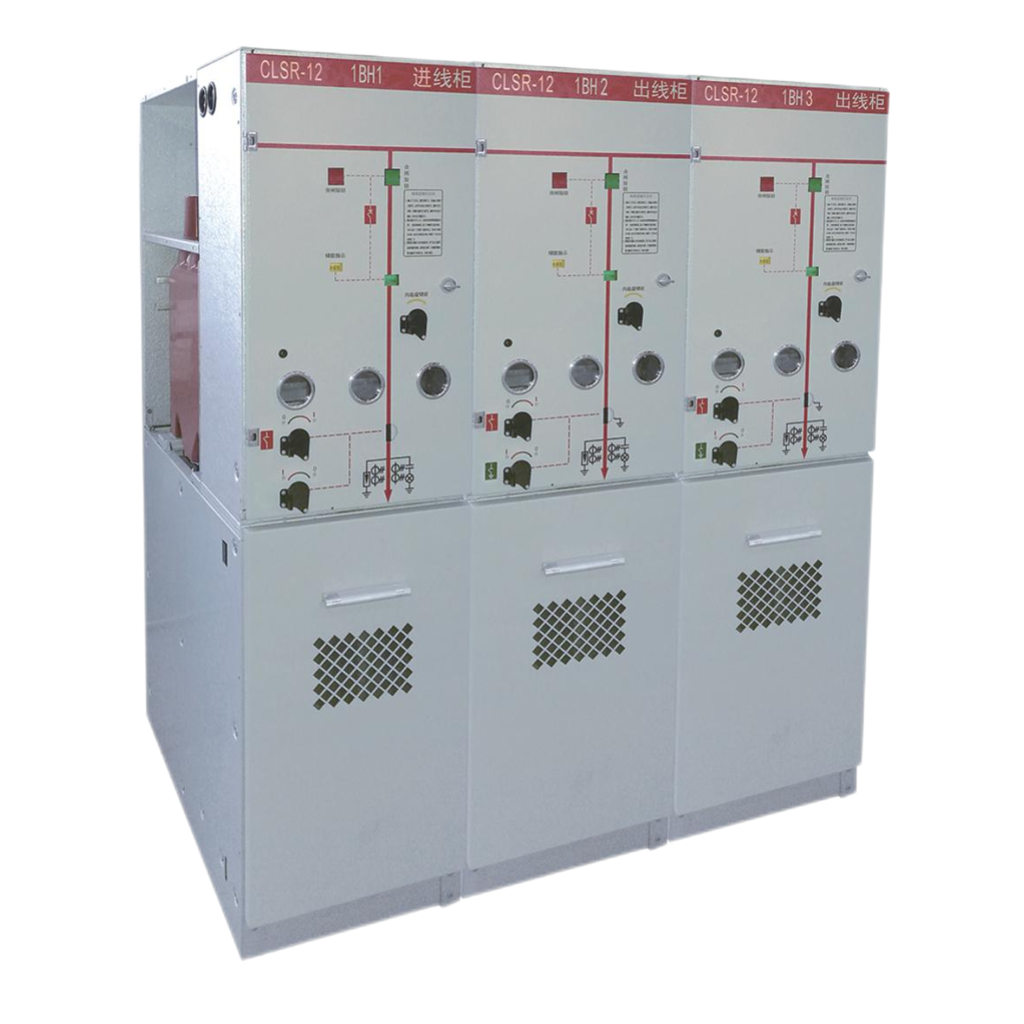

The core of high voltage switchgear consists of a collection of centralized electrical disconnect switches, fuses, and circuit breakers, primarily used for protecting, controlling, and isolating electrical equipment. Its primary function is to disconnect the power supply to the equipment to facilitate subsequent maintenance work and to quickly clear faults downstream.
Such equipment is typically designed for circuits with operating voltages exceeding 1,000 volts (though specific definitions may vary), serving as the fundamental infrastructure for controlling the flow of current within power grids. It directs electrical power to designated areas and, when necessary, particularly during abnormal conditions such as short circuits, ceases power supply.
High voltage electrical switchgear is so important because it has multiple functions, each of which plays a key role in the stability and safety of the power grid:

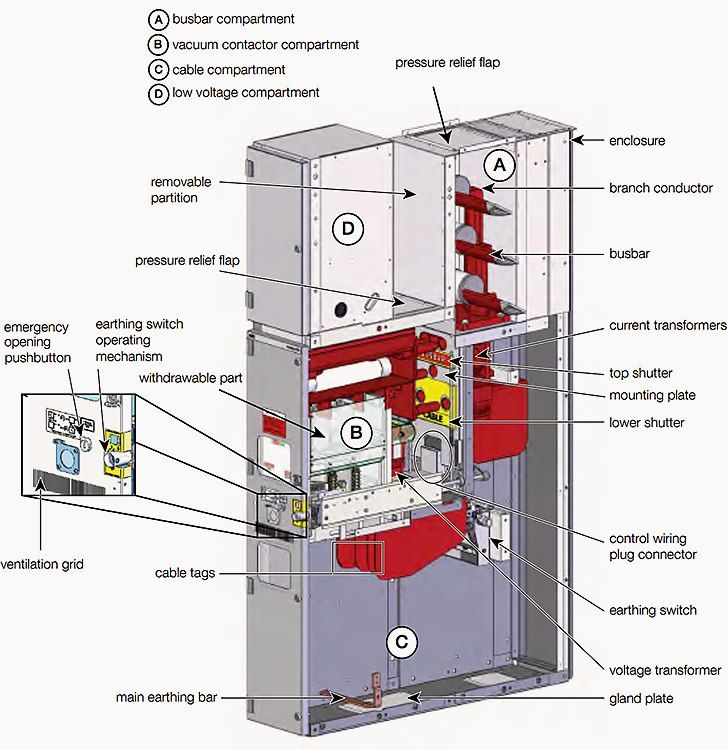

A typical HV switchgear assembly is a complex interplay of various components, each serving a specific purpose. Let’s break down the 8 main elements you’ll find:
Circuit breakers are undoubtedly the most critical protective devices in switchgear. Their primary function is to quickly disconnect the circuit when the system encounters abnormal conditions or fault currents, such as short circuits, thereby protecting the entire electrical system from damage. Unlike the fuses we commonly use, circuit breakers can be reclosed and reused after the fault is resolved, which is highly convenient. There are also many types of circuit breakers available on the market, including oil circuit breakers, air circuit breakers, vacuum circuit breakers, and SF6 gas circuit breakers, among others. Each type has its own optimal application scenarios and voltage ratings.
A disconnect switch, commonly referred to as an “isolator,” is essentially a mechanical switch primarily used to completely isolate a specific section of a circuit when the circuit is de-energized. It is important to emphasize that it is not designed to disconnect circuits with current flowing through them. Therefore, you must wait until the circuit breaker has tripped and confirmed that no current is flowing before operating it. Its primary function is to provide a visually identifiable break point in the circuit, ensuring 100% safety for personnel during maintenance work.
These include current transformer (CT) and potential transformer (PT).
The function of a current transformer (CT) is to “reduce” high currents to a level that can be safely measured, allowing ordinary ammeters and protective relays to be used.
A potential transformer (PT) (sometimes also called a voltage transformer, VT) reduces high voltages to a lower, measurable voltage level, making it easier for voltmeters and relays to read.
A earthing switch is a safety device that connects the de-energized part of a circuit firmly to the earth (i.e., grounding) to ensure that maintenance personnel working on the equipment are not injured by residual charges or accidental re-energization. Like disconnecting switches, earthing switches can usually only be operated when the circuit is completely de-energized.
Relays are the core components of protection systems. They detect various abnormal conditions, such as overcurrent, undervoltage, or frequency deviation, based on signals from instrument transformers. Once a relay detects a fault, it immediately sends a trip signal to the circuit breaker, instructing it to act and quickly cut off and isolate the faulty area.
A busbar is essentially a conductor that collects electricity from external sources and distributes it to various outgoing lines. In simple terms, they are shared connection points in substations or switchgear. Busbars are typically made of copper or aluminum and are designed to carry large currents without overheating.
Surge arresters, also known as surge protection devices, are primarily used to protect electrical equipment from damage caused by lightning strikes or sudden high-voltage surges generated during system switching operations. These devices safely divert dangerous high-voltage surge currents to the ground, thereby preventing sensitive equipment from being damaged.
Transformers, although not always considered part of the switchgear “box,” are often closely associated with switchgear in industrial environments such as substations and factories. Their function is to increase or decrease voltage so that electricity can be transmitted and distributed more efficiently.
Based on its physical design and the medium used for insulation, high voltage switchgear can be divided into two main categories:
Gas Insulated Switchgear (GIS) utilizes Sulfur Hexafluoride (SF6) gas as the primary insulating medium. All live parts (busbars, circuit breakers, disconnectors, etc.) are enclosed in grounded metal compartments filled with SF6 gas under pressure. This design makes GIS extremely compact, highly reliable, and resistant to environmental influences like pollution, humidity, and extreme temperatures. GIS is ideal for urban substations, industrial plants, and areas where space is a premium.
Air Insulated Switchgear (AIS) uses atmospheric air as the insulating medium between live parts and ground, and between phases. The components are typically mounted on structures in the open air. AIS is less compact than GIS but generally more cost-effective for larger installations where space is not a constraint. It requires more regular maintenance due to its exposure to the environment.
| Feature | Gas Insulated Switchgear (GIS) | Air Insulated Switchgear (AIS) |
| Insulation Medium | Sulfur Hexafluoride (SF6) gas | Air |
| Footprint | Compact, significantly smaller (up to 10% of AIS footprint) | Large, requires significant outdoor space |
| Cost | Generally higher initial cost | Lower initial cost |
| Reliability | High, due to enclosed design, less susceptible to environmental factors | Good, but more exposed to environmental elements like pollution, moisture |
| Maintenance | Lower maintenance due to sealed environment | Higher maintenance due to exposure to environment, requiring regular cleaning |
| Applications | Urban areas, industrial plants, offshore platforms where space is limited, high pollution environments | Rural areas, traditional substations, applications where space is not a constraint |
| Environmental Impact | SF6 is a potent greenhouse gas, requires careful handling and recycling | Minimal direct environmental impact from insulation medium |
Proper maintenance is extremely important for high voltage switchgear, as it directly affects how long the equipment will last and whether it will operate reliably. Neglecting maintenance can lead to costly equipment failures, significantly longer downtime, and even safety hazards. Therefore, key maintenance tasks mainly include:
Adhering to manufacturer guidelines and industry standards for maintenance schedules is crucial to maximize the lifespan and performance of your HV switchgear.
Choosing the right high voltage switchgear manufacturer is extremely important, as it directly affects the reliability, safety, and operational efficiency of your power infrastructure. Therefore, before making a decision, there are several key factors that you must carefully consider:
If you are looking for a partner to meet your hv switchgear needs, we sincerely invite you to learn more about Chuanli. We offer a comprehensive range of high-quality high-voltage equipment solutions, backed by our years of accumulated expertise and our consistent commitment to innovation and customer satisfaction. Our products are designed in strict accordance with the highest performance and safety standards to ensure reliable power distribution for a wide range of applications.
High voltage switchgear is an indispensable infrastructure in our modern society, quietly ensuring the continuous and safe transmission of electricity, providing power for our daily lives and industrial production. Therefore, understanding the composition, types, functions, and maintenance methods of high voltage switchgear is of critical importance for anyone working in the power system field.
