In the complex field of power systems, switchgear and transformers are two critical components that are often confused due to their common presence in substations and industrial facilities. While both are indispensable for achieving efficient power distribution, their functional roles are fundamentally different. For anyone involved in electrical engineering, equipment maintenance, or seeking to deeply understand how electricity is delivered to households, a thorough understanding of these core differences is essential.
Chuanli is committed to providing reliable electrical solutions and believes that well-informed customers can make the best decisions. In the following sections, we will detail the core differences between switchgear and transformers, their unique roles, and how they work together to ensure the stable operation of power systems.
A transformer is a static electrical device that uses the principle of electromagnetic induction to transfer electrical energy between two or more circuits. Its primary function is to change voltage levels—either by increasing the voltage to enable the transmission of electrical energy over long distances, thereby significantly reducing energy loss during transmission; or by decreasing the voltage to ensure that electrical energy can be safely and conveniently distributed for our daily use.
You can think of it as a “gearbox” within the power system. If the current power’s “speed” (i.e., voltage) is too high for a specific application, the transformer can reduce it. Conversely, if we need to “accelerate” the power to transmit it over longer distances, the transformer can handle it effortlessly. Transformers operate based on Faraday’s law of electromagnetic induction and are indispensable for the efficient and economical transmission and distribution of alternating current (AC).

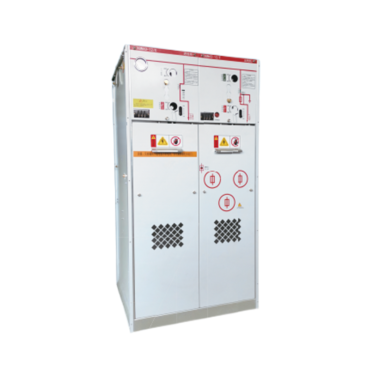

Switchgear is a comprehensive term referring to a combination of various electrical components, typically comprising isolating switches, fuses, and circuit breakers, primarily used for controlling, protecting, and isolating electrical equipment. Its core function is to regulate, protect, and isolate power circuits and related equipment.
You can think of switchgear as the “traffic control and safety management center” of the power grid. It directs the flow of current and can quickly open or close circuits to isolate issues during faults (such as short circuits or overloads), while providing necessary protection for downstream equipment. This not only ensures the safety of operators but also prevents damage to the entire power system. Switchgear has a wide range of applications, from large power plants to various industrial facilities and commercial buildings, where it is widely used.
| Feature | Transformer | Switchgear |
| 1. Functionality | Changes voltage levels (step-up or step-down) | Controls, protects, and isolates electrical circuits and equipment |
| 2. Operational Mechanism | Electromagnetic induction | Mechanical switching and circuit interruption mechanisms |
| 3. Main Components | Coils (primary & secondary), core, insulating oil | Circuit breakers, switches, fuses, relays, busbars, control panels |
| 4. Types | Power, distribution, instrument, autotransformers | Air-insulated, gas-insulated, vacuum, oil-insulated; LV, MV, HV |
| 5. Operations | Static operation; no moving parts in energy conversion | Dynamic operation; involves opening/closing circuits, fault clearing |
| 6. Installation Focus | Voltage transformation and impedance matching | Circuit protection, isolation, and system control |
| 7. Role in Power Systems | Fundamental for voltage conversion in transmission/distribution | Essential for system protection, reliability, and maintenance |
The core function of a transformer is to convert electrical energy from one voltage level to another. Transformers are passive devices, unlike switchgear, which directly controls the flow of current. Switchgear, on the other hand, is an active control and protection system. It does not alter voltage but manages current flow and isolates issues promptly in the event of a fault, effectively preventing widespread power outages.
The working principle of a transformer is based on electromagnetic induction. When performing its core function of voltage conversion, there are no mechanical moving parts inside, and it operates statically. Switchgear, on the other hand, involves various mechanical operations, such as the opening and closing of circuit breaker contacts, the movement of isolating switches, and the activation of protective relays when they receive signals.
A transformer’s core components are pretty simple, mainly its primary and secondary coils (also called windings) and a magnetic core, which are usually soaked in insulating oil. Switchgear, on the other hand, is a more complex assembly that includes circuit breakers, disconnectors, fuses, protective relays, current transformers, voltage transformers, and busbars, among other components, all of which are integrated and enclosed in a single housing.
Transformers are categorized by their application (e.g., power transformers for transmission, distribution transformers for local supply, instrument transformers for metering) and construction. Switchgear types are often classified by the insulation medium used (e.g., air-insulated switchgear (AIS), gas-insulated switchgear (GIS), vacuum switchgear), or by their voltage level (e.g., low voltage (LV), medium voltage (MV), high voltage (HV) switchgear).
Once a transformer is installed and energized, its operating state is essentially static, continuously converting voltage. Switchgear, however, is entirely different; it operates dynamically. It is always ready to perform operations, capable of quickly disconnecting the circuit to interrupt fault currents in the event of a fault, or closing the circuit to restore power when needed. These actions typically occur within a fraction of a second.
When installing a transformer, we primarily focus on its rated voltage, power capacity (e.g., kVA or MVA), and cooling system to ensure it can efficiently perform voltage conversion. For switchgear, our priorities differ. We place greater emphasis on its breaking capacity, the current it can withstand during a short circuit, its insulation level, and its compatibility with other protective devices. All of these factors are crucial for ensuring the safety and reliability of the entire power system.
Transformers play a critical role in enabling efficient long-distance power transmission and the safe distribution of electricity to end users. It is safe to say that without transformers, the modern power grid as we know it today would not exist. Similarly, switchgear is essential for the protection, control, and overall reliability of power systems. It ensures that faults are quickly isolated, effectively preventing cascading power outages and protecting expensive power assets.
You don’t typically “choose between” switchgear and a transformer, as they serve different, complementary functions. The selection process involves determining the specific needs of your electrical system:
Often, both will be present in a comprehensive electrical setup. For instance, a substation will have large transformers to change voltage, and robust switchgear to protect those transformers and the outgoing feeder lines. At Chuanli, we can help you assess your specific needs and recommend the right components for your power system.
No, switchgear and transfer switches are different, even though both involve circuit switching. This is indeed a common point of confusion.
A transfer switch is a special type of electrical switch whose primary function is to switch the load between two power sources, typically from the mains power supply to a backup generator and vice versa. Its core function is to ensure that critical equipment continues to receive power supply during a power outage.
Switchgear, as we discussed earlier, is a broader category that encompasses various devices used for circuit control, protection, and isolation. While a transfer switch does perform switching functions, it is a specialized component within a larger electrical system designed for a specific application, whereas switchgear provides comprehensive system management and protection.
Understanding the unique roles of switchgear and transformers is key to grasping the complexity and reliability of modern power systems. Transformers primarily handle voltage conversion, enabling efficient power transmission; switchgear, on the other hand, acts as a guardian, ensuring safe current flow and system control. Both are indispensable for maintaining a stable and efficient power supply.
At Chuanli, we specialize in providing high-quality electrical components and professional advice to help you build and maintain a robust and reliable power infrastructure. Whether you currently need transformers, switchgear, or other critical electrical equipment, our professional team is dedicated to serving you, ensuring your power system operates safely and efficiently around the clock.
Transformers enable high-voltage transmission, reducing losses over long distances. Switchgear prevents widespread outages by quickly isolating faults, and modern versions can optimize power flow, leading to better overall system efficiency.
Strict protocols like Lockout/Tagout (LOTO), using appropriate Personal Protective Equipment (PPE), conducting arc flash analyses, and ensuring proper training are crucial for both.
High-quality transformers can last 40-60+ years due to their static nature. Switchgear typically lasts 20-50 years, with components like circuit breakers potentially requiring more frequent maintenance due to mechanical operations.
For transformers, challenges include overheating, insulation breakdown, and oil leaks. For switchgear, common issues are fault interruption failures, aging components, arc flash hazards, and environmental factors.
