In today’s industrial and utility sectors, ensuring the safety and reliability of power distribution systems is critical. One of the most essential components in achieving this is the switchgear, which controls, protects, and isolates electrical circuits. Among the various types available, metal-clad and metal-enclosed switchgear are widely used across different applications. While these terms are sometimes used interchangeably, they refer to fundamentally different technologies. Understanding their distinctions can help engineers and facility managers select the right solution for their power system needs.
Switchgear refers to a centralized collection of circuit protection devices that includes disconnect switches, fuses, and circuit breakers. Its primary function is to manage the flow of electricity, allowing systems to be shut down safely during maintenance or emergency situations. Based on the operational voltage and specific application, different switchgear designs are chosen to meet performance, safety, and budgetary needs. Two of the most common configurations in industrial settings are metal-clad and metal-enclosed switchgear.

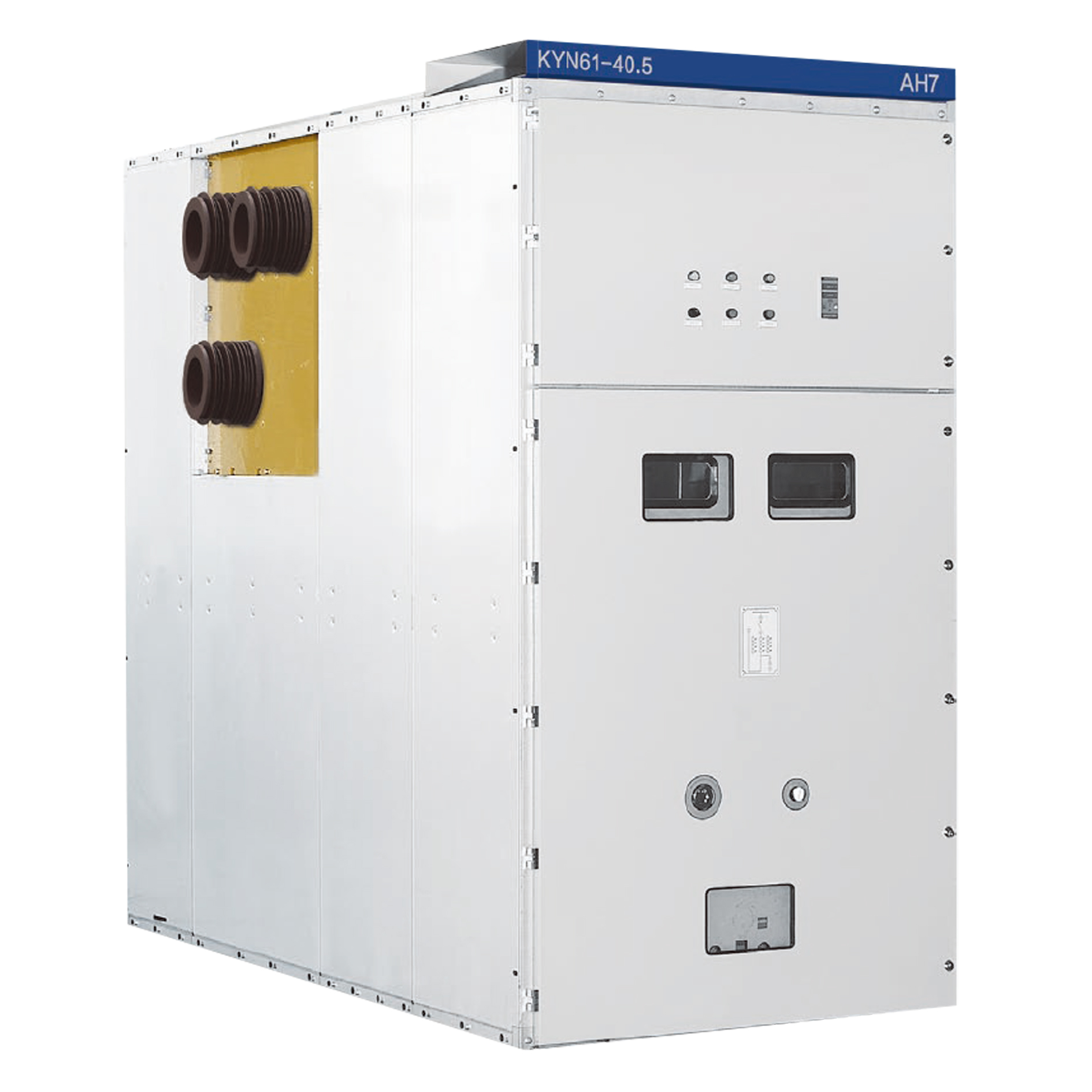

Metal-clad switchgear is a high-performance solution designed primarily for medium voltage systems, generally between 2.4 kilovolts and 38 kilovolts. In this configuration, each functional component, including the circuit breaker, busbars, and cable compartments, is isolated within its own grounded sheet metal enclosure. These compartments are fully segregated to prevent accidental contact and contain potential faults. The circuit breakers used in metal-clad systems are usually drawout types, which means they can be physically removed for maintenance or testing while maintaining system safety. The structure includes safety-enhancing features such as automatic shutters that close off live parts when breakers are removed and mechanical interlocks that ensure proper operating sequences. This modular, compartmentalized design enhances both safety and serviceability, making metal-clad switchgear ideal for mission-critical environments.
Metal-enclosed switchgear, in contrast, is commonly used in low voltage applications, typically up to 1 kilovolt, though medium voltage versions also exist. Instead of separating components into individual compartments, metal-enclosed switchgear places all primary components within a single metal housing. This includes the circuit breakers, disconnect switches, and busbars. The compact design minimizes the overall footprint, and components are often fixed in place rather than being removable. Although it lacks the high degree of isolation found in metal-clad systems, metal-enclosed switchgear provides a practical and cost-effective solution where the risk of electrical fault is low and space is limited.
| Feature | Metal-Clad Switchgear | Metal-Enclosed Switchgear |
|---|---|---|
| Voltage Application | Typically medium voltage (2.4 kV to 38 kV) | Low to medium voltage (up to 15 kV) |
| Enclosure Design | Separate, compartmentalized metal enclosures | All components housed in a single metal enclosure |
| Breaker Type | Removable (drawout) breakers | Fixed-mounted breakers |
| Component Separation | Busbars, breakers, and cables are in isolated compartments | All components share a common space |
| Safety Features | Automatic shutters, grounded barriers, mechanical interlocks | Limited safety features |
| Maintenance Accessibility | High, with easy breaker removal and safe access | Lower, often requires full shutdown for maintenance |
| Space Requirement | Larger footprint due to separate compartments | Compact footprint |
| Cost | Higher due to enhanced protection and build complexity | More cost-effective |
| Use Case | Critical systems requiring high safety and reliability | Budget-friendly or space-constrained systems |
While both systems are built using sheet metal enclosures and aim to improve the safety and reliability of electrical distribution, they differ substantially in design, performance, and application. Metal-clad switchgear operates in the medium voltage range and features a compartmentalized construction. Each major element of the power circuit—such as circuit interrupters, busbars, and cable connections—is separated by grounded metal barriers, which enhances fault containment and personnel protection. The drawout nature of its breakers allows for simplified maintenance and testing. On the other hand, metal-enclosed switchgear is generally used in low voltage systems and houses all components in a single shared enclosure. It is typically more compact and less expensive than metal-clad alternatives but does not offer the same level of compartmentalization or operational safety. While metal-clad switchgear is well-suited to complex installations that demand high reliability and maintenance flexibility, metal-enclosed switchgear is more appropriate for simpler systems with budget or space limitations.
Choosing between metal-clad and metal-enclosed switchgear depends on several factors, including the operating voltage, space availability, safety requirements, maintenance needs, and overall budget. If the system operates above 1 kilovolt and safety or serviceability is a top priority, metal-clad switchgear is generally the preferred choice. Its isolated compartments and removable breakers provide enhanced protection for personnel and equipment during operation or servicing. On the other hand, for low voltage environments or when cost and compactness are key concerns, metal-enclosed switchgear may be the more suitable option. It offers adequate functionality and safety for less demanding applications while conserving space and reducing initial investment. Medium voltage metal enclosed switchgear can also offer a balanced compromise, delivering some degree of separation without the complexity of a fully metal-clad system.
Metal-clad and metal-enclosed switchgear are both critical components in modern electrical distribution networks, but they serve different operational and structural roles. Metal-clad switchgear offers superior safety, isolation, and maintenance flexibility, making it ideal for high-stakes or high-voltage environments. Metal-enclosed switchgear, while less robust in its separation of components, provides a compact and economical solution for more straightforward electrical systems. Understanding the unique characteristics of each type—particularly in terms of voltage range, enclosure configuration, and maintenance approach—ensures that electrical engineers and facility managers make informed choices aligned with their project needs and performance expectations. In a power system where safety and reliability are non-negotiable, selecting the right switchgear is a foundational step toward long-term operational success.
