European cable split-box is widely used in power distribution network in recent years in the cable engineering equipment, its main characteristics are two-way door, the use of wall bushing as a connection busbar, with a small length, clear cable arrangement, three-core cable does not need large span cross and other signifi cant advantages. The cable connector used conforms to DIN47636 standard. Generally use rated current 630A bolted bolted connection type cable joint.
Overview
European cable split-box is widely used in power distribution network in recent years in the cable engineering equipment, its main characteristics are two-way door, the use of wall bushing as a connection busbar, with a small length, clear cable arrangement, three-core cable does not need large span cross and other signifi cant advantages. The cable connector used conforms to DIN47636 standard. Generally use rated current 630A bolted bolted connection type cable joint.
Model Meaning
| DFW | □ | – | □ | □ |
| ↓ | ↓ | ↓ | ↓ | |
| Cable distribution box | Voltage level | Circuit number (Total number of incoming and outgoing lines in a phase) | A indicates a lightning arrester The default value is none |
Conditions Of Use
• Ambient temperature: maximum temperature: +40℃ , minimum temperature -30℃ ;
• Wind speed: equivalent 34m/s(not more than 700Pa);
• Humidity: the average daily relative humidity is not more than 95%, the average monthly relative humidity is not more than 95%;
• Shockproof: horizontal acceleration is not more than 0.4m/s2, vertical acceleration is not more than 0.15m/s2 installation site inclination: not more than 3° ;
• Installation environment: The surrounding air is not significantly polluted by corrosive, flammable gas, water vapor, etc., and there is no violent vibration at the installation site.
Main Technical Parameters
| Name | Argument |
| Rated voltage | 12KV |
| Rated current | 630A |
| Dynamic stable current | 50kA/0.3s |
| Thermally stable current | 20kA/3s |
| 1min power frequency withstand voltage | 42KV |
| 15 min DC withstand voltage | 52KV |
| Lightning impulse withstand voltage | 105KV |
| Case protection class | IP33 |
Typical Connection Scheme
| Specification and model | Connection scheme | Internal arrangement | Overall dimensions(mm) |
| DFW12-2 |  |  | 520×540×950 |
| DFW12-3 |  |  | 520×640×950 |
| DFW12-4 |  |  | 520×740×950 |
| DFW12-5 |  |  | 520×840×950 |
| DFW12-6 |  |  | 520×940×950 |
| DFW12-7 |  |  | 520×1040×950 |
| DFW12-8 |  |  | 680×940×1100 |
| DFW12-9 |  |  | 680×840×1100 |

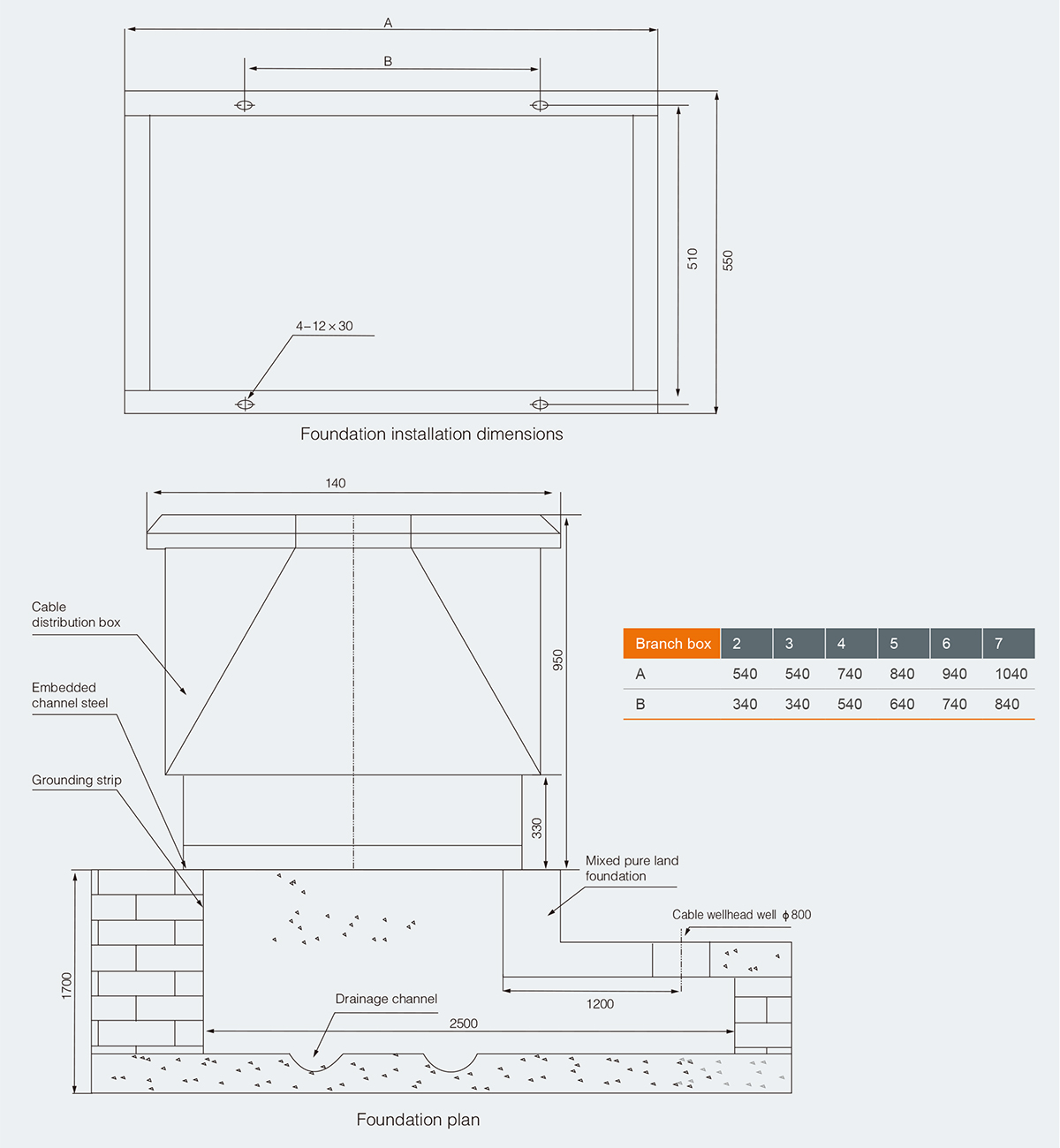

European Cable Distribution Box Foundation Drawing
